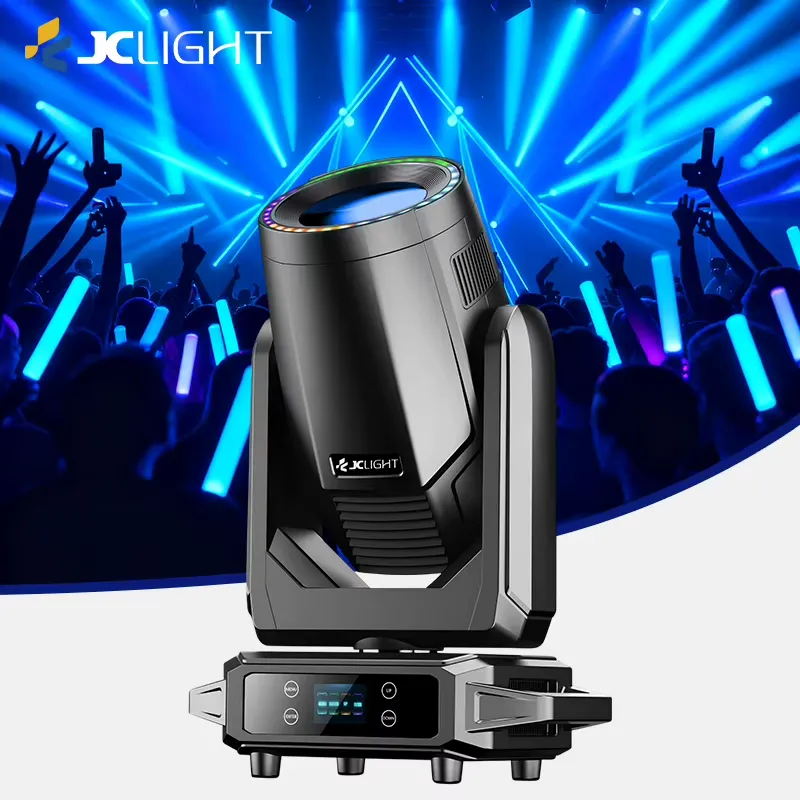

Mini 230W 7R Beam Moving Head Light

Beam 230 Moving Head Light with Phoenix 7R 8R 13R Lamp Options and DMX512 Control

The Beam 230 Moving Head Light is a professional lamp-based stage lighting fixture featuring original Phoenix 7R, 8R, and 13R light source options with listed lamp powers of 230W, 260W, and 295W. Equipped with 145mm large-diameter optics and a narrow 1.8° beam angle, this moving head light is designed to create concentrated beam effects for concerts, nightclubs, DJ performances, and professional stage productions.

The fixture combines 540° pan and 270° tilt movement with 8-bit and 16-bit positioning, a 12-color wheel, fixed gobos, multiple prism configurations, and mechanical dimming. Its 16-channel DMX512 system supports professional lighting control, while master-slave, auto-run, and sound-activated modes provide additional operating options for different entertainment environments.

Key Features

• Original Phoenix 7R, 8R, and 13R lamp options.
• Available lamp powers of 230W, 260W, and 295W.
• 350W, 380W, and 400W power consumption options.
• 145mm large-diameter optical system with a narrow 1.8° beam angle.
• 540° pan and 270° tilt movement with 8-bit and 16-bit positioning.
• Electronic ballast for lamp operation.
• 12 colors plus white with half-color rainbow effects.
• 13 fixed gobos plus open, with gobo jitter effects.
• 8-prism and 8+16+24-prism configurations with overlay capability.
• 0%–100% mechanical dimming.
• 16-channel DMX512 control.
• Master-slave, auto-run, and sound-activated operating modes.

Available Light Source and Power Options

Light Source Brand	Original Phoenix Lamp
Lamp Types	7R / 8R / 13R
Lamp Power Options	230W / 260W / 295W
Power Consumption Options	350W / 380W / 400W

The available lamp types, lamp powers, and power consumption values are listed separately because their exact configuration combinations have not been specified. Buyers should confirm the required version before placing an order.

Technical Specifications

Product Type	Beam Moving Head Light
Voltage	AC110-240V / 50-60Hz
Power Consumption	350W / 380W / 400W
Light Source	7R / 8R / 13R, 230W / 260W / 295W Original Phoenix Lamp
Optics	145mm Large Diameter
Pan	540°
Tilt	270°
Pan / Tilt Positioning	8-Bit / 16-Bit
Ballast	Electronic Ballast
Color Wheel	12 Colors + White, Half-Color Rainbow Effect
Gobo Wheel	13 Fixed Gobos + Open, Gobo Jitter Effect
Prism	8 Prism / 8+16+24 Prism, Overlay Capability
Dimming	0%–100% Mechanical Dimming
Beam Angle	1.8°
Control Modes	DMX512 / Master-Slave / Auto-Run / Sound
DMX Channels	16CH
Product Size	31 × 20 × 46cm
Package Size	51 × 37 × 40cm

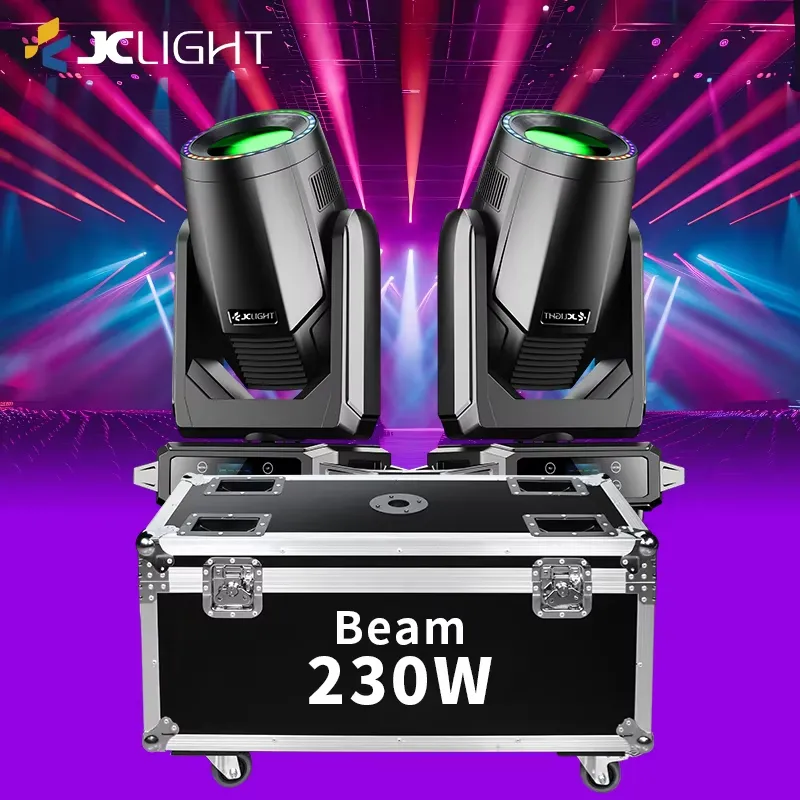

Flight Case Package	37 × 69 × 65cm (2pcs, 38kg)
Net Weight	9.0kg
Gross Weight	11.0kg

Original Phoenix Lamp and 145mm Optical System

The Beam 230 moving head series offers original Phoenix lamp configurations identified as 7R, 8R, and 13R, with available lamp power ratings of 230W, 260W, and 295W. A 145mm large-diameter optical system works with the specified 1.8° beam angle to produce concentrated beam effects for stage lighting applications.

An electronic ballast is included in the fixture configuration. The lamp selection and corresponding electrical specifications should be confirmed according to the requirements of each project.

1.8° Narrow Beam for Stage Lighting Effects

The 1.8° beam angle allows the fixture to produce narrow, directional beams for entertainment lighting arrangements. Whether used for a DJ performance, concert stage, or nightclub installation, the Beam 230 moving head light can be incorporated into designs requiring defined beam movement and visual effects.

The mini beam 230 design has listed product dimensions of 31 × 20 × 46cm and a net weight of 9.0kg, providing specific physical information for equipment selection and installation planning.

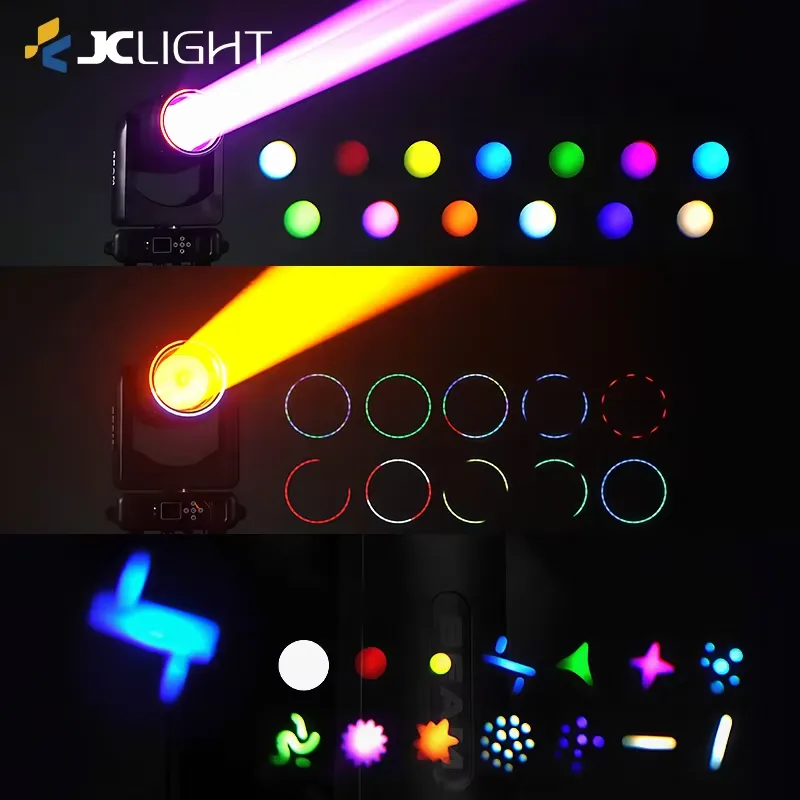

Color Wheel, Fixed Gobos, and Prism Effects

The fixture features a color wheel with 12 colors plus white, along with a half-color rainbow effect. These color options can be combined with moving beam effects to create different visual presentations during live performances.

A separate gobo wheel includes 13 fixed gobos plus an open position, with gobo jitter effects for additional pattern movement. The prism system offers 8-prism and 8+16+24-prism configurations with overlay capability, allowing different beam-splitting effects to be incorporated into stage lighting scenes.

DMX512 Control and 8-Bit / 16-Bit Positioning

The Beam 230 moving head light supports DMX512 control with 16 channels. Its movement system provides 540° pan and 270° tilt ranges with 8-bit and 16-bit positioning, allowing directional beam movement to be incorporated into programmed lighting sequences.

Additional master-slave, auto-run, and sound-activated modes offer different operating options. The fixture also includes 0%–100% mechanical dimming for adjustment of light output during a performance.

Applications for Concerts, Nightclubs, and DJ Stages

The Beam 230 moving head light can be considered for professional entertainment lighting projects where concentrated beams, color changes, gobo patterns, and prism effects are required.

• Concert Lighting: Directional moving beams and prism effects for live music stages.
• Nightclub Lighting: Moving light patterns, color effects, and beam movement for entertainment spaces.

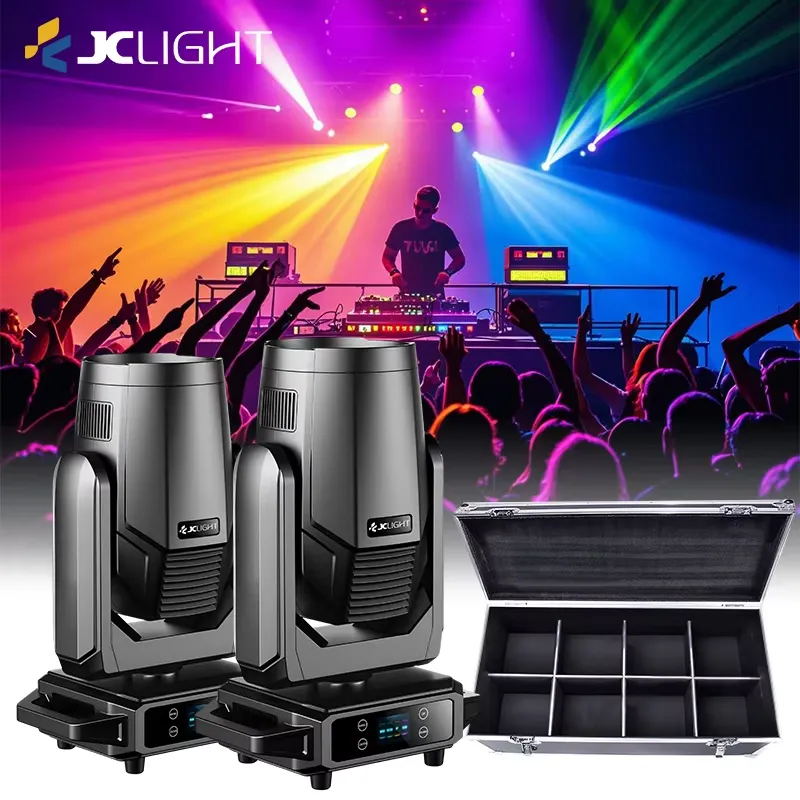

• DJ Performances: Sound-activated and DMX-controlled effects for music-based lighting setups.
• Stage Productions: Beam effects, gobo patterns, and controlled pan-tilt movement for show lighting designs.
• Lighting Rental Projects: Multiple lamp configurations and documented packaging dimensions for equipment selection and transport planning.

Product Selection for Professional Lighting Buyers

For stage lighting distributors, rental companies, event production businesses, and project contractors, the Beam 230 moving head light offers several Phoenix lamp and power options within one beam lighting series. The technical specifications provide information for comparing the light source, optical design, control functions, dimensions, and packaging arrangements.

Professional buyers can request further product information and quotations based on their required lamp configuration, quantity, and stage lighting application.
