6 Head RGB Moving Laser Bar for Stage and Club Lighting
The 6 Head RGB Moving Laser Bar Light series includes the I8-1 and I8-2 models. Both use semiconductor-pumped laser sources and support DMX512 control for dynamic laser effects in professional entertainment environments.
Designed for bars, KTV venues, discos, dance halls and hotels, these fixtures offer sky-net beam effects, flowing-line effects and stroboscopic patterns. Operators can select DMX512, master/slave, automatic or sound-activated control according to the lighting setup.
The two models provide different optical control systems. The I8-1 uses a precision stepper-motor scanning arrangement with moving laser heads, while the I8-2 uses a 15K galvanometer scanning system, analog modulation and a built-in pattern library.
Key Features
- Six RGB Laser Sources: Six laser modules arranged in a multi-head bar configuration.
- Two Model Options: I8-1 with stepper-motor movement and I8-2 with galvanometer scanning.
- Dynamic Laser Effects: Sky-net beams, flowing-water-style lines and stroboscopic effects.
- DMX512 Control: Supports integration into compatible stage lighting control setups.
- Multiple Operating Modes: DMX512, master/slave, automatic operation and sound control.
- Different Modulation Systems: TTL modulation on I8-1 and analog modulation on I8-2.
- Built-in Patterns: I8-2 includes 100 built-in patterns.
- Model-Specific Channel Modes: 19CH for I8-1 and 20/120CH for I8-2.

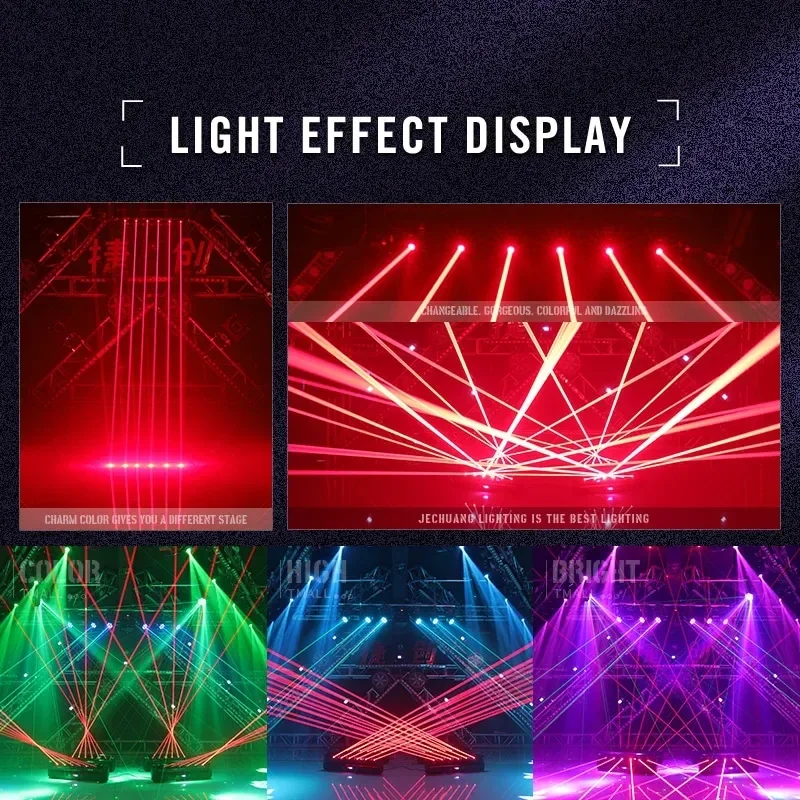

RGB Laser Beam Effects
The six-head laser bar format supports multi-source laser effects within a single fixture. It can be used to create coordinated beam arrangements and moving laser sequences as part of a stage lighting design.
Sky-Net Beam Effects
The specified sky-net beam effect produces grouped laser beam arrangements for entertainment lighting. The final visual appearance depends on fixture positioning, programming and venue conditions.
Flowing-Line and Strobe Effects
Both models include flowing-line and stroboscopic effects. These provide different visual patterns for music-led performances and programmed lighting scenes.

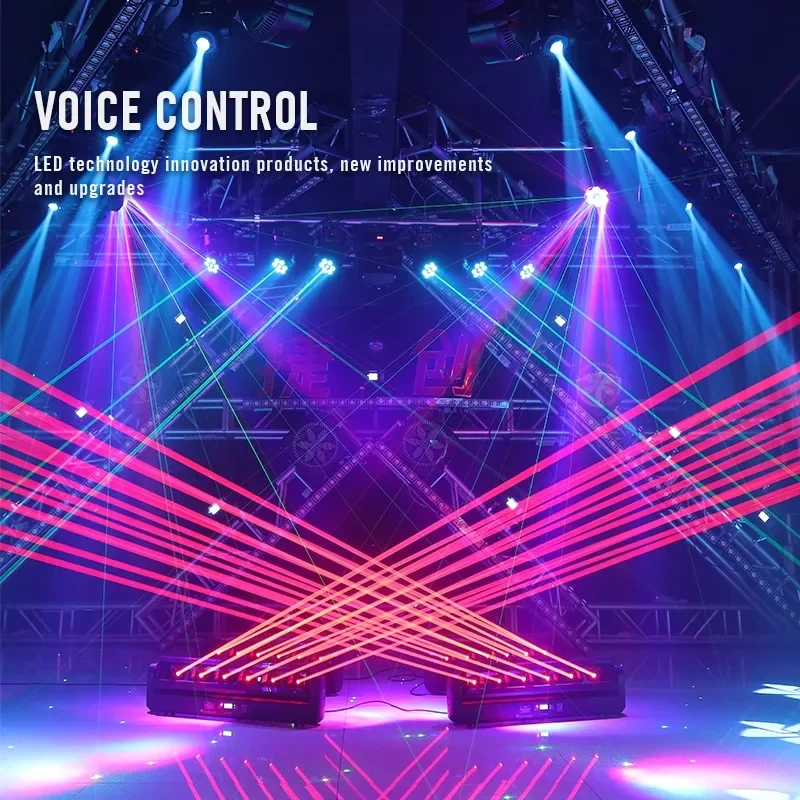

Sound-Activated Laser Effects
The sound-control mode offers an alternative to externally programmed DMX operation for music-based lighting effects. Automatic and master/slave modes are also supported.

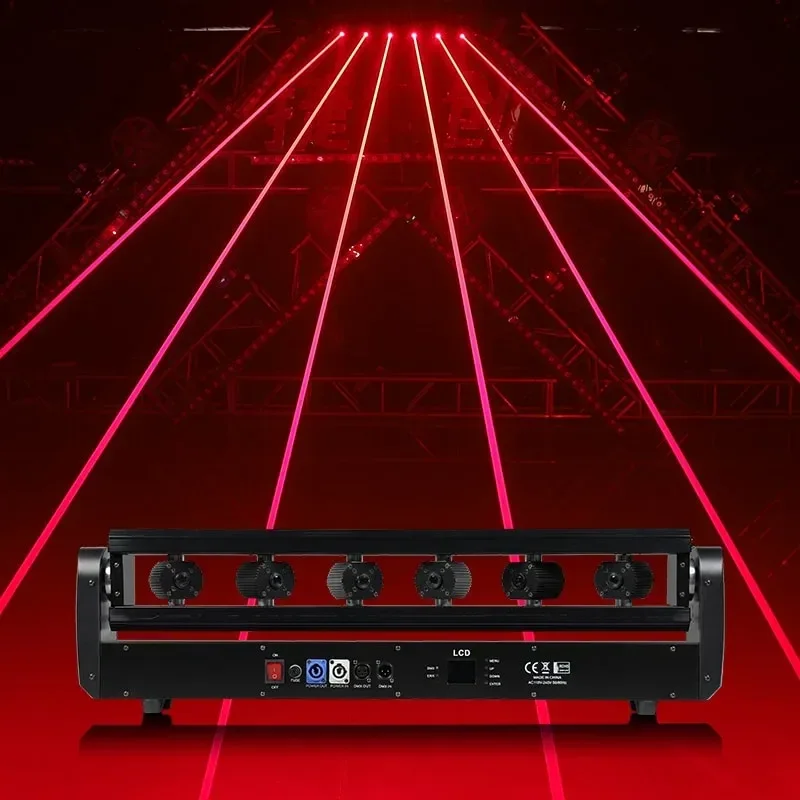

I8-1 – 3000mW RGB Moving Laser Bar
The I8-1 features six 500mW RGB laser modules with a specified total output of 3000mW. It uses TTL modulation and a precision stepper-motor scanning system.
The Y-axis supports a 240° swing, while the X-axis laser heads can also swing. These movement functions support changing laser beam directions during programmed or automatic effects.
With 19 DMX channels, the I8-1 is designed for lighting setups that require moving laser effects alongside standard DMX-controlled stage equipment.
I8-1 Technical Specifications
| Model | I8-1 |
|---|---|
| Input Voltage | AC 100–230V, 50/60Hz, ±10% |
| Power Consumption | 150W |
| Laser Source | Semiconductor-pumped laser |
| Laser Power | 3000mW total (6 × 500mW) |
| Laser Color | RGB |
| Specified Wavelength | 638nm |
| Modulation | TTL |
| Scanning System | Precision stepper-motor scanning |
| Y-Axis Swing | 240° |
| X-Axis Movement | Laser head swing |
| Control Modes | DMX512 / Master-Slave / Auto / Sound |
| DMX Channels | 19CH |
| Dimensions | 1060 × 85 × 180mm |
| Listed Weight | 16kg |
I8-2 – RGB Laser Bar with 15K Galvanometer Scanning
The I8-2 uses six RGB semiconductor laser modules with an analog modulation system. Its 15K galvanometer scanner supports a specified scanning angle of ±20°.
The built-in library contains 100 patterns, providing additional options for laser pattern effects. A 2.4-inch full-color display supports fixture operation and configuration.
With 20-channel and 120-channel DMX modes, the I8-2 offers two channel configurations for compatible lighting control systems. It also supports automatic, sound-activated and master/slave operation.
I8-2 Technical Specifications
| Model | I8-2 |
|---|---|
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 170W |
| Laser Source | Semiconductor-pumped RGB laser |
| Red Laser | 400mW / 638nm |
| Green Laser | 600mW / 520nm |
| Blue Laser | 1000mW / 445nm |
| Scanning System | 15K galvanometer |
| Scanning Angle | ±20° |
| Modulation | Analog |
| Built-in Patterns | 100 |
| Control Modes | DMX512 / Master-Slave / Auto / Sound |
| DMX Channels | 20CH / 120CH |
| Display | 2.4-inch full-color display |
| IP Rating | IP20 |
| Dimensions | 1000 × 249 × 290mm |
| Net Weight | 19.8kg |
| Gross Weight | 22kg |
I8-1 vs I8-2 – Model Comparison
| Feature | I8-1 | I8-2 |
|---|---|---|
| Power Consumption | 150W | 170W |
| Laser Modulation | TTL | Analog |
| Scanning | Stepper motor | 15K galvanometer |
| DMX Channels | 19CH | 20/120CH |
| Built-in Patterns | Not specified | 100 |
| Laser Output | 3000mW total | Pending specification confirmation |
| Dimensions | 1060 × 85 × 180mm | 1000 × 249 × 290mm |
Choose the model according to the required scanning method, DMX channel configuration and laser effects. Confirm the final I8-2 laser output specification before ordering.
Applications
Nightclubs and Discos
Use moving laser beam arrangements and stroboscopic effects as part of professionally controlled nightclub lighting scenes.
Bars and KTV Venues
Apply automatic, sound-activated or DMX-controlled effects to entertainment lighting setups in bars and KTV rooms.
Dance Halls and Entertainment Spaces
Combine laser beam movement and programmed patterns with other venue lighting equipment for coordinated visual effects.
Hotels and Event Venues
Include laser effects in suitable indoor event lighting installations where the fixture specifications, venue conditions and applicable laser safety requirements permit their use.
Laser Safety and Operating Requirements
These products use high-output laser sources intended for professional entertainment lighting. Installation, operation and beam positioning must follow the applicable laser safety requirements, product instructions and local regulations.
Do not direct laser beams toward people or other unapproved areas. Confirm the applicable laser safety classification and required approvals for the exact model and destination market before purchase or operation.
The I8-2 is specified as IP20. No IP rating has been confirmed for the I8-1.
Laser Bar Lighting Product Inquiry
For model selection and project quotations, provide the intended venue, required laser effects, quantity, DMX control requirements and destination market.
Contact us to request the I8-1 or I8-2 technical information and a product quotation.
